8 Line Wires Welded Wire Mesh Used For Concrete Weight Coating
Product Description
Concrete weight coating galvanized wire mesh is designed to provide negative buoyancy and mechanical protection
for pipelines in subsea and wet environments. It helps the pipeline sink to the ocean floor and remain in position on
the seabed, prevents the pipeline from being damaged during installation and after it is in place.
| Name | 8 Line Wires Welded Wire Mesh Used For Concrete Weight Coating |
| Material | Galvanized wire |
| Wire diameter | 2.0mm, 2.2mm, 2.5mm, 2.6mm, etc |
| Width | 190.5mm |
| Technique | Welded |
| Mesh Hole Size | 25.4mm x 67mm |
| Length per roll | 140m, 280m |
| Hardness | 485-650N/mm2 |
Product Applications
It's normally used for the reinforcement on concrete weight coating of offshore oil and gas pipeline, popular in the
world marine construction industry. It is applicable for the compression and impingement coating process. The line
wires are deeply crimped to facilitate the concrete applications.
Product Features
1. High tensile strength
2. Anti-corrosion, anti-rust
Product Specifications
| Wire Dia. | Mesh | Width | Length |
| 2.0mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| 2.2mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| 2.4mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| 2.6mm | 25.4mm x 67mm | 190.5mm | 140m, 280m |
| Products can be customized according to customers' requirements. | |||
There are mainly two types of concrete weight coating wire mesh as below:
Product show

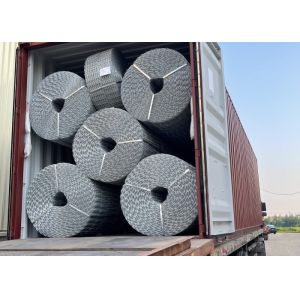

Packing and Delivery
